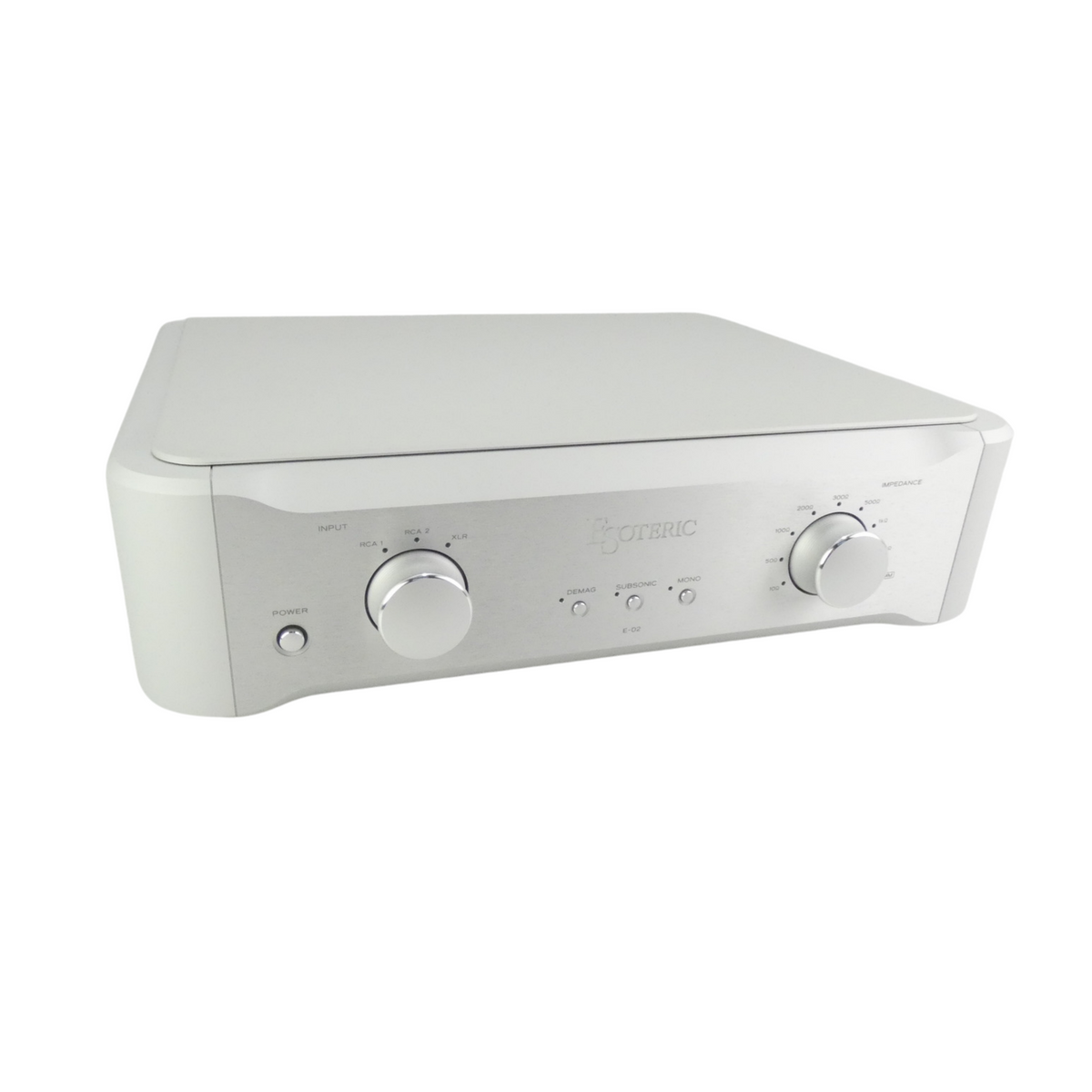

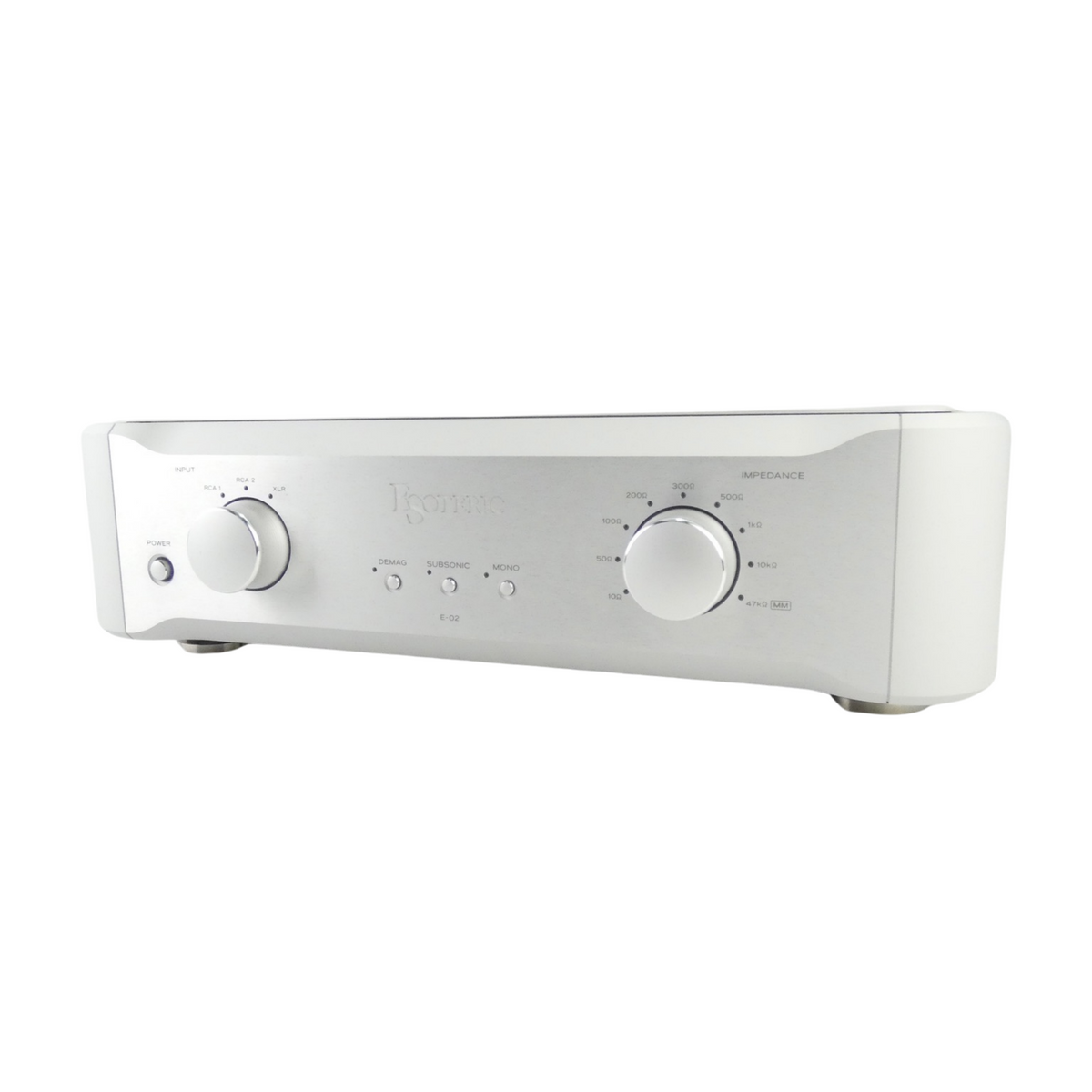

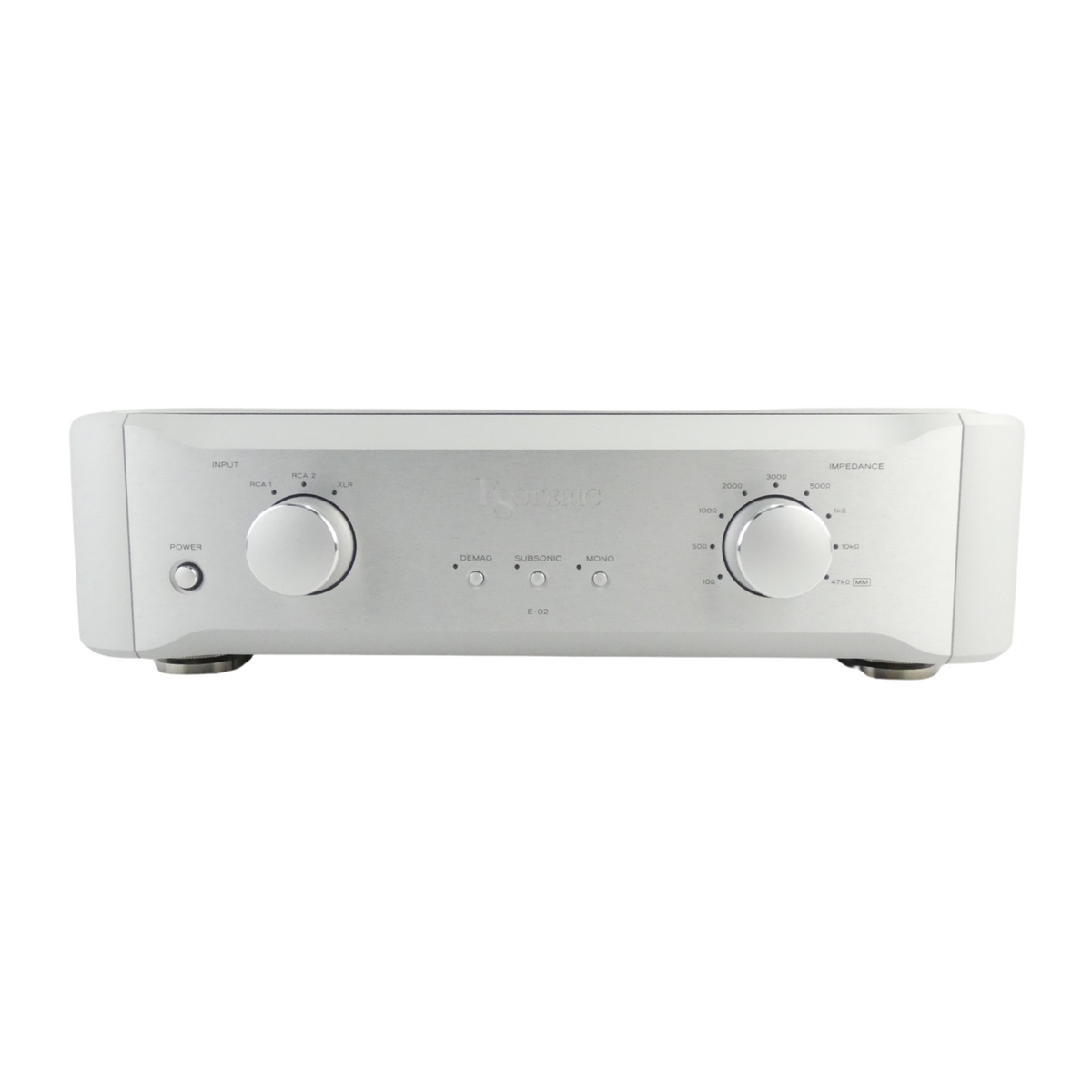

Esoteric E-02 Phono Preamplifier
Esoteric built the E-02 as their reference phono stage — fully discrete circuit, no op-amps anywhere in the signal path, dual mono layout from input to output. MM and MC both supported, with MC loading and gain adjustable via rear-panel switches so you can dial it in for whatever cartridge you’re running without buying a different box.
Three separate regulated power supplies handle different sections of the circuit independently, which is the kind of thing that shows up as a lower noise floor and a cleaner separation between channels. The HCLD output stage — Esoteric’s own High Current Line Driver — handles the final output with the same topology they use in their reference CD players.
Built in Japan. Discontinued, which means the only way to own one now is used.
Specifications
- Inputs: MM (47kΩ) and MC (selectable: 10Ω, 33Ω, 100Ω, 1kΩ, 47kΩ)
- Gain: MM 40dB / MC 60dB or 66dB (selectable)
- Equalization: RIAA

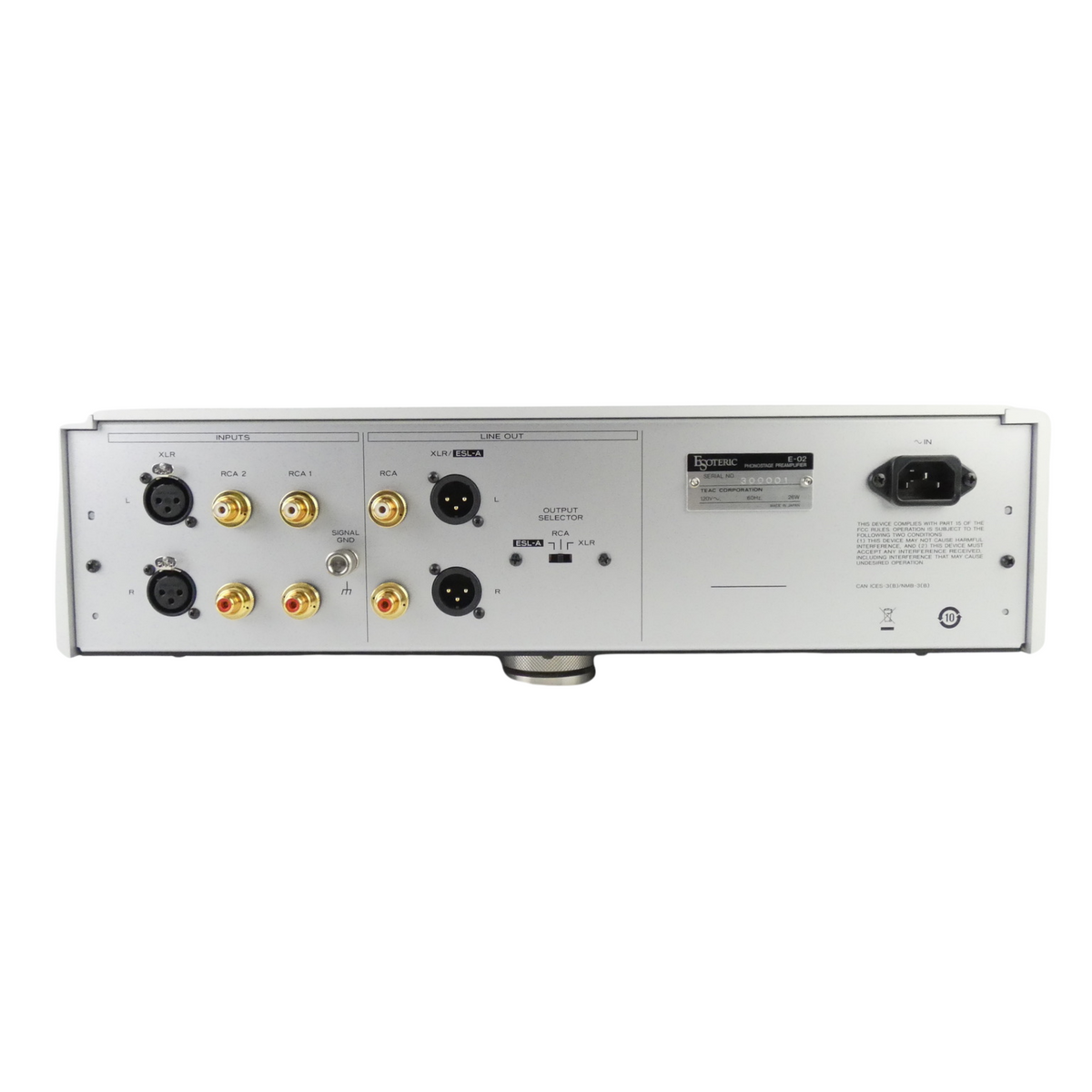

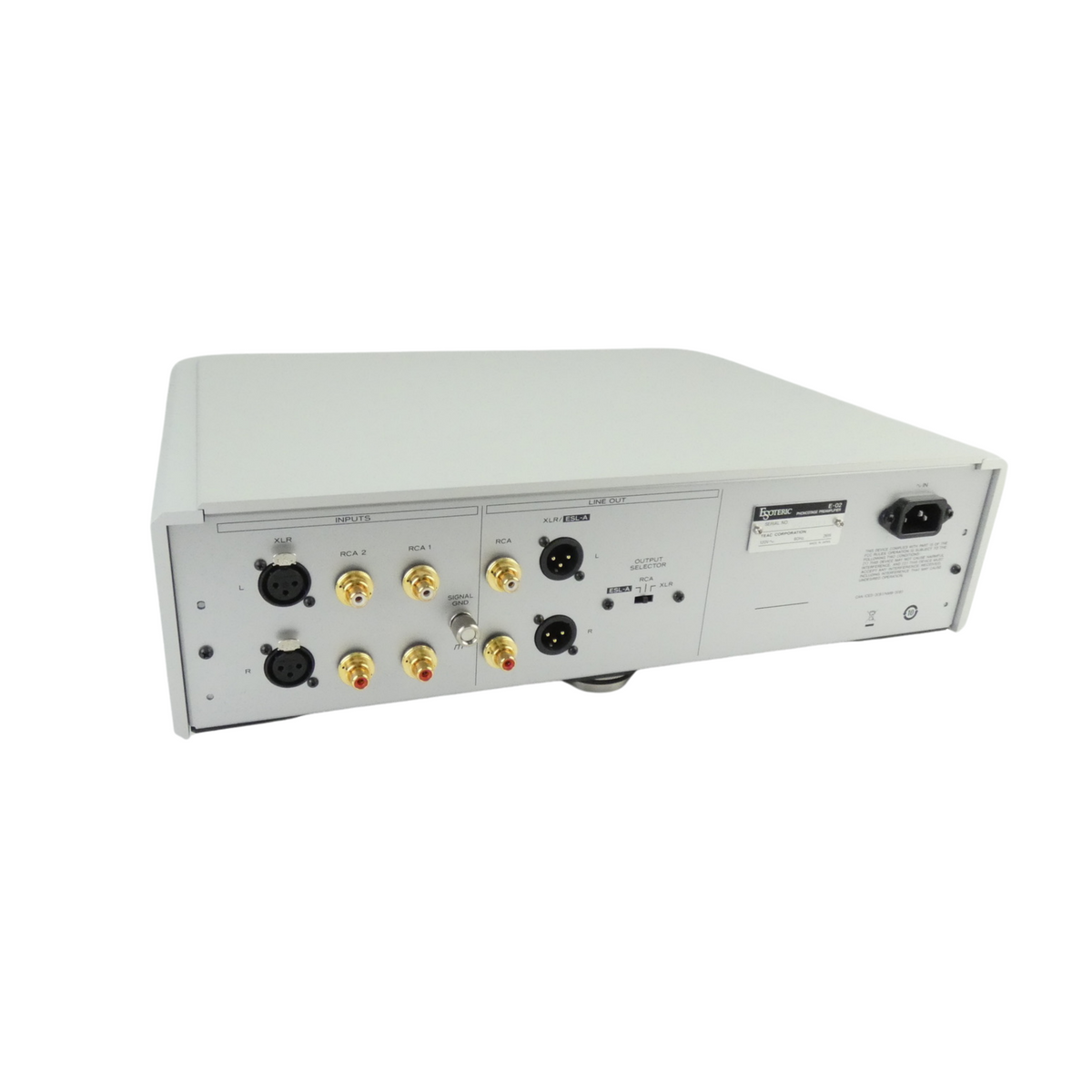

- Output: RCA unbalanced, XLR balanced
- Power Supply: Triple regulated, independent
- Output Stage: Esoteric HCLD (High Current Line Driver)
- Origin: Japan
Couldn't load pickup availability
Return Policy
Return Policy
We offer a 3-day return window on all purchases. Returns made to a credit or debit card will incur a 5 percent processing fee. Shipping costs, both to and from, are the responsibility of the customer if applicable.
After the 3-day window and up to 3 weeks from the date of purchase, items may still be returned, subject to a 20 percent restocking fee.
For shipped orders, customers must notify us within 3 days of receiving the item to initiate a return. Once the item is received back in the same condition it was sent, we will issue a refund minus all shipping charges and a 5 percent credit card processing fee.
Need Help? View our services
Need Help? View our services
Esoteric built the E-02 as their reference phono stage — fully discrete circuit, no op-amps anywhere in the signal path, dual mono layout from input to output. MM and MC both supported, with MC loading and gain adjustable via rear-panel switches so you can dial it in for whatever cartridge you’re running without buying a different box.
Three separate regulated power supplies handle different sections of the circuit independently, which is the kind of thing that shows up as a lower noise floor and a cleaner separation between channels. The HCLD output stage — Esoteric’s own High Current Line Driver — handles the final output with the same topology they use in their reference CD players.
Built in Japan. Discontinued, which means the only way to own one now is used.
Specifications
- Inputs: MM (47kΩ) and MC (selectable: 10Ω, 33Ω, 100Ω, 1kΩ, 47kΩ)
- Gain: MM 40dB / MC 60dB or 66dB (selectable)
- Equalization: RIAA
- Output: RCA unbalanced, XLR balanced
- Power Supply: Triple regulated, independent
- Output Stage: Esoteric HCLD (High Current Line Driver)
- Origin: Japan
8.5/10, Great Condition.
